Yuasa 550-005 Rapidex Vert / Horizontal 5C Collet Indexer & New Chuck - $550 (Ft Worth, TX 76053)
condition:
excellent
make / manufacturer:
Yuasa International
model name / number:
Yuasa 550-005
size / dimensions:
6" Chuck / 5C Collets
QR Code Link to This Post

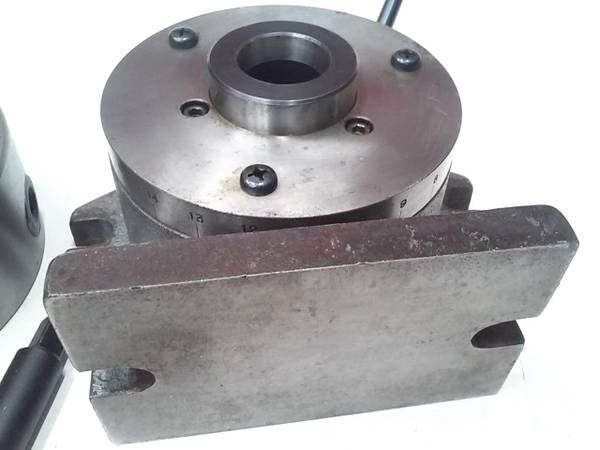

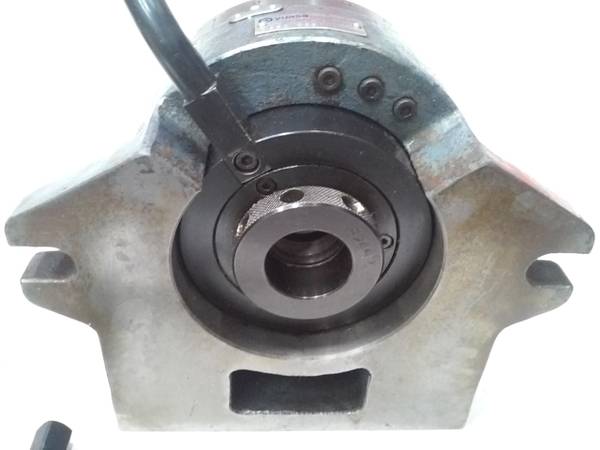

Yuasa 550-005 Horizontal / Vertical 5C Rapid Indexer & 3 Jaw Chuck*
Condition: Used / Excellent / See Pictures & Complete Description
Fastest way to get a hold of me is cell / text at 817-201-nine nine zero eight
*Note: The chuck is not mounted, there is no backplate, you will have to make
a custom backplate to mount this to the indexer, which really is not a big deal.
I originally was going to machine a back plate myself, but I've got other indexers
now so I don't need this set up etc. I originally wanted one of these with a chuck
that had two piece reversible jaws because the optional Yuasa chucks were only
1 piece jaw sets so it was a pain to change out the jaws for different diameter
material etc, plus with 2 piece jaws you can get soft jaws and custom machine
them too. Chuck is a 6" chuck and clears the base no problem, best way to
machine a backplate would be out of a 1/2 thick steel round disc. The chuck is
originally a back mount chuck, but you can take these chucks apart and drill the
original mounting holes all the way through the chuck body and then attach the
chuck to your mounted backplate that way. Mounting bolt holes are going to be
metric and not sure if there is enough meet to the body to counter bore the bolt
holes for metric socket head cap screws, if not the heads will just not be flush.
Like I say, not a bid deal to machine a backplate, your a machinist right, plus
when you get through you'll have a way better indexer than the solid jaw version.
These are a real handy quick indexer to have, especially with the chuck option
too. Lot easier loading one of these on your Bridgeport or similar knee mill table
than an 8" Yuasa Accu-Dex or Super Accu-Dex and they index a lot faster too.

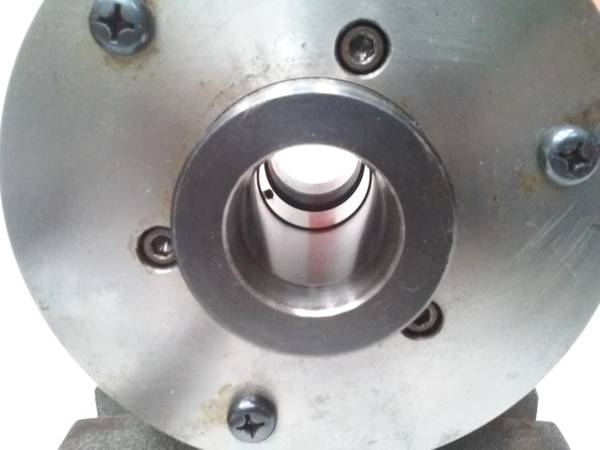

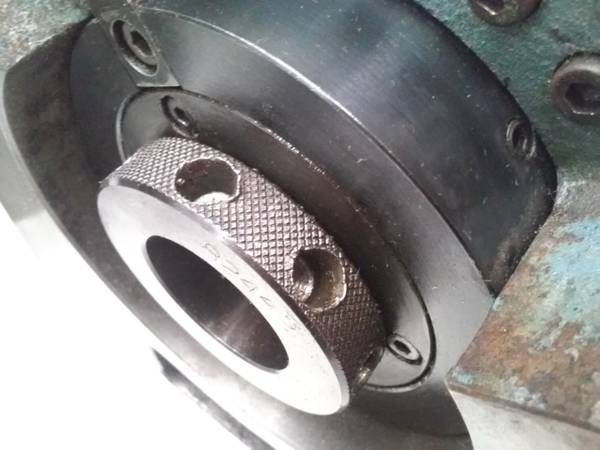

You can also take the chuck off and use it as a standard 5C collet indexer too.

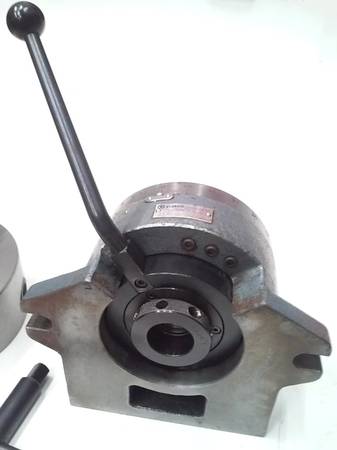

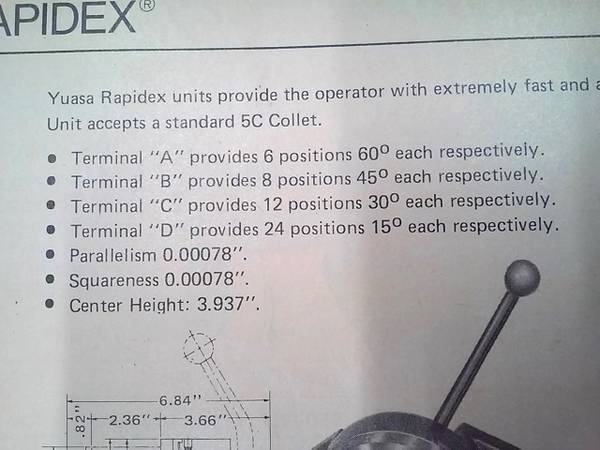

Each full handle stroke is 60 degrees, or you can set the stroke stop screws to
limit each stroke to 15, 30, or 45 degrees as well by adjusting the stop screws
out to limit the stroke, you lock the spindle by pulling back on the stroke handle.
Setup here comes with a new, unmounted / no back plate, 6" / 160mm diameter

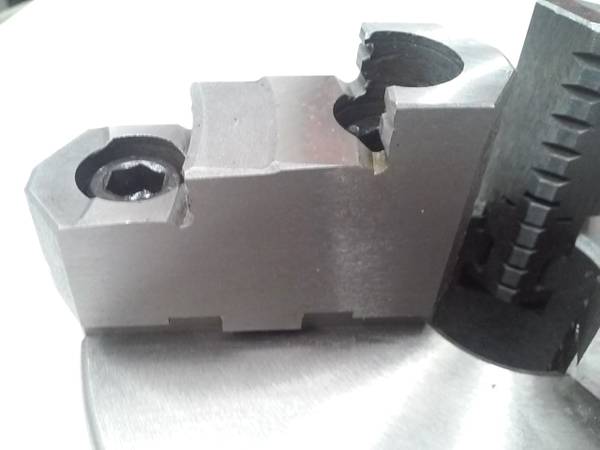

3 jaw universal chuck, with 2 piece reversible, tongue and groove hardened jaws.
Also below is a list of other items I have listed or will be listing soon etc.
New BTC 10" Adjust Tru 6 Jaw Lathe Chuck, 2 Piece Jaws & D1-6 Backplate
New Abbott Workholding TG10MDP2, 10"x 6" Aluminum Pie Jaw Set
New Cushman 1" to JT4, Straight Shank Drill Chuck Arbors
Yuasa 525-102 High Speed Air Jig Bore Grinder, R8, 36 - 67,000 RPM
Starrett 25-511J Dial Indicator, .0001" Res, .200" Range, AGD2
Starrett 81-136-623 Dial Indicator .0005" Res, AGD 1 Size
Mitutoyo 7004 & Mitutoyo 7003 Dial Indicator Comparator Stands
ONO SOKKI ST-003 & ST-022 Dial Indicator Comparator Stands
New Teclock AI-935 Dial Test Drop Indicator, .001 Res, .250 Travel
New Mitutoyo 543-402 Electronic Dial Indicator, Lug Back
NOS Mitutoyo 543-252 Electronic Dial Indicator Lug Back
NOS Mitutoyo 543-272 Electronic Dial Indicator Lug Back
New Mitutoyo 516-614804, 175 mm Long Square Gage Block, Grd 2
4 New DoAll 1" HSS Endmills, 4 Flute Center Cutting, Weldon Shank
Clean Used O.K. Obishi Keiki 8" Precision Bench Center
New Russellstoll 7328DP & Russellstoll 7324-78, 60 Amp, 3 Phase pin &
sleeve plug with 16 foot, 6/4 SO cable pigtail and matching receptacle.
Items are located in Hurst, TX 76053, about 10 mins West of DFW airport just off Hwy
183 or just 10 mins East of downtown Ft. Worth off Hwy 183 in Hurst. Also to see my
other items for sale here just search DFW Craigslist, "for sale" with my partial phone
number: 817-201-99 & you'll see everything I currently have listed here on Craigslist.
Indexer Price: 550.00, Text / Phone 817-201-99 zero eight , afternoons or evenings.
